Sound Vibration Warning Modes Portable UAV Detection Jamming System
Product Details:
| Place of Origin: | China |
| Brand Name: | HEWEI |
| Certification: | YES |
| Model Number: | GTUS-IIP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | carton package, 690*300*80mm |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 30 pieces per month |
|
Detail Information |
|||
| Name: | Sound, Vibration Warning Modes, Portable UAV Detection & Jamming System | Module Type: | High-precision L1, 15 Dual-frequency GNSS Receiving Module |
|---|---|---|---|
| Position System: | Beidou, GPS | PPS Search Accuracy: | ±15ns |
| Maximum Speed: | 515m/s | Speed Accuracy: | 0.1m/s |
| Dynamic Heading Angle Accuracy: | 0.3 | Operating Frequency: | 900 ~ 930MHz, 1550 ~ 1620MHz, 2400 ~ 2500MHz, 5715 ~ 5850MHz |
| Output Power: | 140W | ||
| Highlight: | Portable UAV Jamming System,Vibration Warning UAV Jamming System,UAV Detection Jamming System |
||
Product Description

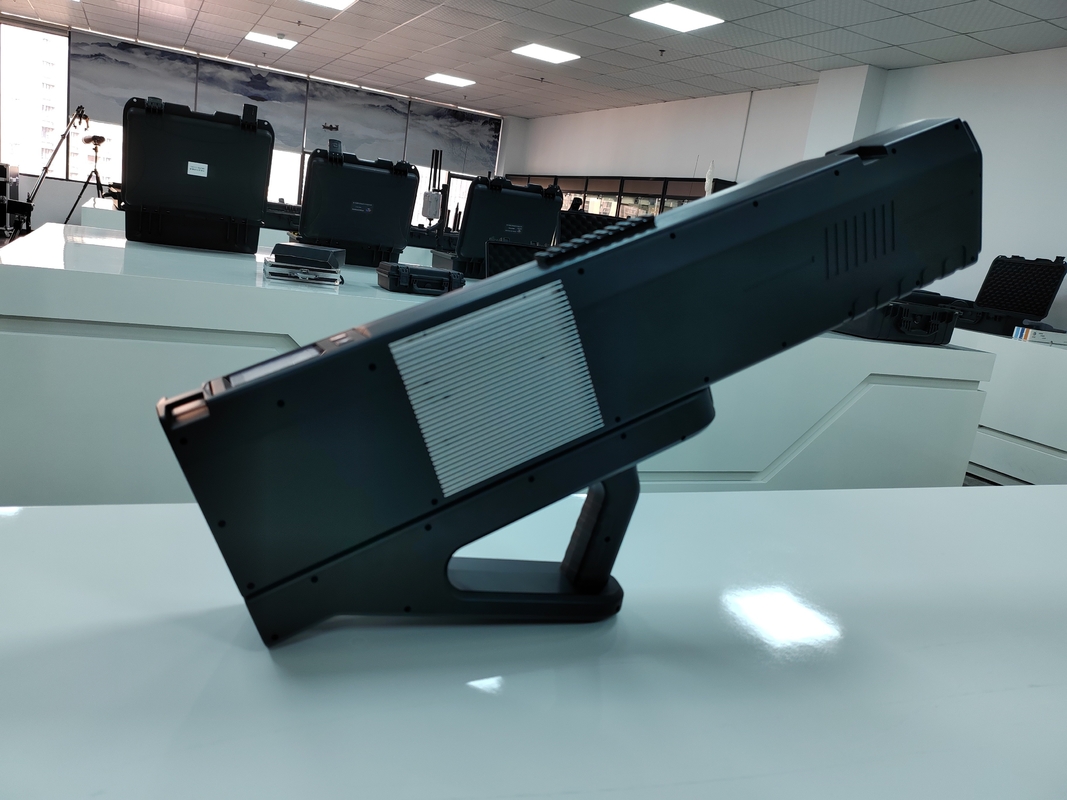

Sound, vibration warning modes, Portable UAV Detection & Jamming system
Model:GTUS-IIP
Description
The system is equipped with a 2.8-inch bright IPS LCD screen, which has the function of detecting the orientation and model of the drone, and has the function of interfering with the frequency band used by the drone, which can drive the drone away or force the drone to land, and completely cut off the contact between the drone and the remote control or the ground station to ensure the safety of the low-altitude airspace in the region. Compared with common portable control equipment, this device adds device positioning and networking functions, and can link the back-end command system to facilitate the background command personnel to make transfers according to the distribution of equipment.
Technical Specification
| Position Function Parameter | |
| Module type | High-precision L1, 15 dual-frequency GNSS receiving module |
| Position system | Beidou, GPS |
| PPS search accuracy | ±15ns |
| Maximum speed | 515m/s |
| Speed accuracy | 0.1m/s |
| Dynamic heading Angle accuracy | 0.3 |
| Networking function parameters | |
| Communication method | UART |
| Communication frequency band | 490MHz |
| Transmission power | 1w |
| Transmission distance | 2km |
| Encryption method | AES dynamic encryption |
| Detection technical parameters | |
| Detection frequency | Dual frequency 2400~2485MHz, 5150~5950MHz |
| Detection antenna gain | 2dBi |
| Detection power consumption | ≤5W |
| Detection mode | Omnidirectional detection, directional detection |
| Detection distance | 1-2km |
| Number of detections | Multiple targets |
| Detection and identification | Commonly used UAV types |
| Warning mode | Sound, vibration |
| Jamming technical parameters | |
| Operating frequency | 900 ~ 930MHz, 1550 ~ 1620MHz, 2400 ~ 2500MHz, 5715 ~ 5850MHz |
| Output power | 140W |
| Signal style | DSSS(spread spectrum) /FHSS (frequency hopping) |
| Battery capacity | 2 pieces of 7000mah lithium batteries |
| Endurance | ≥30 minutes (continuous launch); ≥120 minutes (30s launch and 90s stop) |
| Product weight | About 4.6kg |
| Product size | Host: 690*300*80mm |
| Working mode | Expel/Forced land mode; Each module can be individually controlled on and off |
| Screen configuration | 2.8-inch high-lighted IPS screen |
| scope magnification | Maximum 4 times |
| Jamming distance | Flight height 100m: control distance ≥1700m, flight height 200m: control distance ≥2000m |
