24 Hours Working Anti Drone UAV Jammers
Product Details:
| Place of Origin: | China |
| Brand Name: | HEWEI |
| Certification: | No |
| Model Number: | HWUDS-6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | carton package 56*40*26cm |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets per month |
|
Detail Information |
|||
| Name: | UAV Jammers | Beamwidth: | Omni-directional 360° |
|---|---|---|---|
| Operating Range（radius）: | ≥1500m | Interference Mode: | Expel UAV/Forced Landing |
| Operation Mode: | Press/wire Control | Power Supply : | AC100-240V,50/60Hz |
| Working Hours: | The Mains Work Continuously | Size Of Antenna: | Diameter: 40mm；Length:65cm |
| Material Of Antenna: | Fiberglass | ||
| High Light: | 24-hours working UAV jammers,24-hours working drone jammers,24-hours working Anti-drone Jammers |
||
Product Description

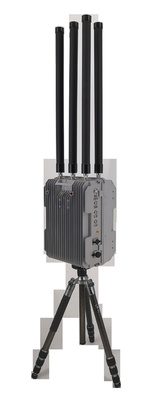

Fixed UAV Jammer
Model:HWUDS-6
Description
The HWUDS-6 system delivers our tried and tested drone jamming capability in a hardened IP67 case for permanent installation onto a building. Like all omni-directional jammers the HWUDS-6 could cause some interference to other devices, we have addressed this issue by attempting to use as low power as possible to defeat the drone.
HWUDS-6 is used in all kinds of emergencies, security sites, important activity sites, airspace of classified units and various places to prevent drones from falling and hurting people. By setting up in the appropriate position, a UAV protection area can be formed in the designated area, then the UAV cannot enter the area. 24-hour unattended no-fly zones can be set up.
Parameters
| 1 | Frequency bands | 6 | |
| 2 | Frequency range | BAND1:420-460MHz | BAND4:1555-1620MHz |
| BAND2:868-930MHz | BAND5:2400-2500MHz | ||
| BAND3:1100-1300MHz | BAND6:5715-5850MHz | ||
| 3 | Output power | BAND1: 50W | BAND4: 40W |
| BAND2: 20W | BAND5: 50W | ||
| BAND3: 30W | BAND6: 30W | ||
| 4 | href="javascript:;" Beamwidth | omni-directional 360° | |
| 5 | Operating range(radius) | ≥1500m | |
| 6 | Interference mode | Expel UAV/Forced landing | |
| 7 | Operation mode | Press/wire control | |
| 8 | Power Supply | AC100-240V,50/60Hz | |
| 9 | Working hours | The mains work continuously | |
| 10 | Weight-Main Unit | 14.5kg | |
| Size | 56*40*26cm | ||
| Material | Adc12 die-casting aluminium | ||
| 11 | Antenna weight | 0.4kg*6 | |
| Size of Antenna | Diameter: 40mm；Length:65cm | ||
| Material of Antenna | Fiberglass | ||
| 12 | Remote control weight | 0.18kg | |
| Remote control size | 17*6.5*2cm | ||
| Connecting wire weight | 0.56kg | ||
| Connecting wire size | Diameter: 8mm；Length 10m | ||
| 12 | Protection grade | IP65 | |
| 13 | Operating environment | Main unit:-20℃ - +55℃ | |
Beijing Heweiyongtai Sci & Tech Co., Ltd. was established in the beginning of 2008. We are a hi-tech enterprise specializing in manufacturing and trading Security inspection equipment, EOD equipment, Anti-terrorism equipment, Intelligence device, etc. Our products are widely applied in public security bureau, military, custom, government security agency, airport, exhibition, etc.
