Full Range Portable Drone Jammer And Detector Station

Product Description

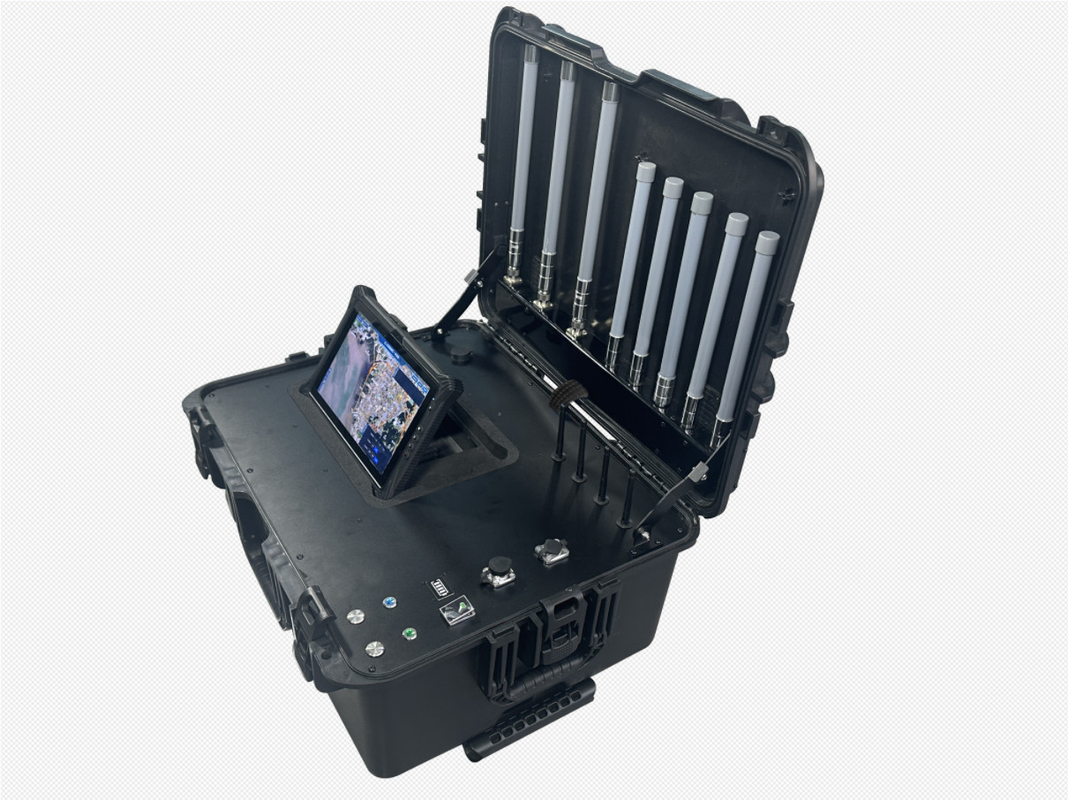

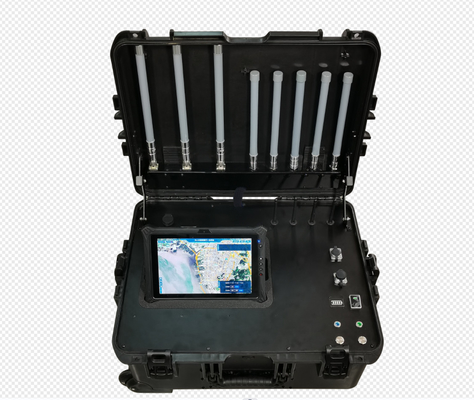

Portable Drone Jammer and Detector Station

Model: HWUDS-IV

Product Description

The portable detection and control integrated box are equipped with a comprehensive drone management and control system. Through in-depth analysis and data mining of drone signals. The serial number, model, and location (longitude, latitude, and azimuth angle) of the drone within the monitoring range can be determined. Remote control position (latitude, longitude, azimuth) and other multi-dimensional information for monitoring. It also has the function of interfering with the frequency band used by drones, which can drive away drones or make forced landings, completely cutting off the connection between drones and remote controllers or ground stations to ensure the safety of low-altitude airspace in the area.

This equipment is suitable for different applications, such as low-altitude security in major event security, guard tasks, security patrols, special anti-terrorism, political core areas, border defenses, military restricted areas, military management areas, power and petrochemical parks and other scenarios.

Functions

1. Drone monitoring: To obtain the serial number, model, location (latitude, longitude, azimuth), altitude, pilot position (latitude, longitude, azimuth) and other information of the drone within the monitoring range;

2. Unique identification (code): It can identify the unique serial number of the drone and confirm the unique identity information of the drone;

3. Drone positioning: It can locate the location information of the drone and display the drone's position (latitude and longitude), orientation information, and distance information (the distance of the drone relative to the location of the device) in real time;

4. Pilot positioning: It can locate the pilot's position information and display the pilot's (remote control) position (latitude and longitude), orientation information, and distance information (the distance of the pilot relative to the location of the device) in real time;

5. Multi-target trajectory tracking: It can position and track drone swarms and display multiple drone flight trajectories at the same time;

6. Safety list: It can distinguish cooperative and non-cooperative drones, the device will not alarm when cooperative drones are detected, and can markup cooperative drones as trusted;

7. Intrusion alarm: When the device detects a drone intrusion, it will issue an sound and light alarm;

8. Trajectory playback: Supports drone flight trajectory playback, assisting security personnel in analyzing historical drone flight data;

9. Detection records: The detection record list can retain historical records, including multi-dimensional information, such as drone serial numbers, models and frequencies, etc.;

10. Multi-unit network: The equipment can be connected to the back-end management and control platform through the Internet, and the multi-unit network can cover a large area;

11. Working mode: Using omnidirectional radio frequency interference antenna

12. Two working modes: expel and forced landing; the control distance is 1.5km;

Key Features

1. Full range of detection drone models: The system can identify brands of drones such as DJI, Daotong, Dahua, and Haoxiang, as well as most of the models on the market such as FPV drones and WiFi drones;

2. Long detection: an open scenario, the detection distance of some models can reach more than 5km;

3. Passive detection: the device does not emit any electromagnetic signals, it is electromagnetic environmental friendly;

4. Integrated software and hardware: Equipped with drone control platform, it can work independently without configure to the other equipment;

5. Mobile and portable: Trolley box-type portable design, small in size, portability;

6. Touch interaction: Touch screen, the operation is simple, convenient and fast;

7. Dual power supply: The device can be powered by a built-in battery or an external power supply;

8. Easy deploy: The device antenna is placed on the top cover of the box, and can be turned on and off by one click;

Technical Parameters
