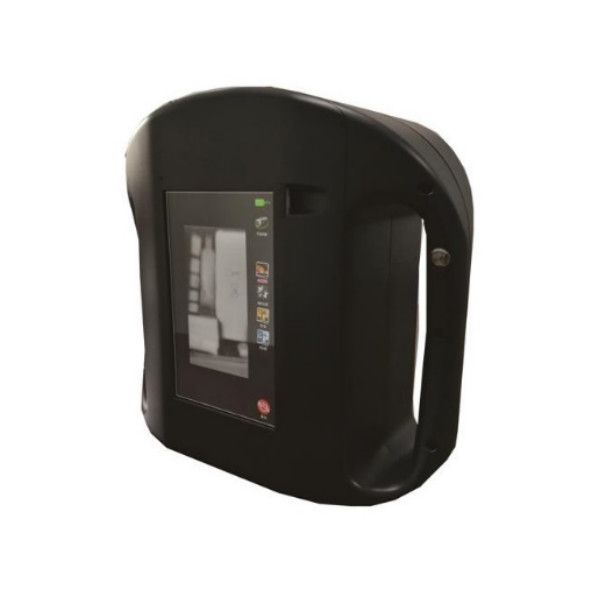

Handheld X-ray Backscatter Real Time Imaging System

Product Description

OVERVIEW

The handheld x-ray backscatter real time imaging system has high-performance. It is capable of detecting contrabands such as IEDs, metallic or non-metallic weapons, drugs, currency, and other organic threats etc.

Its compact and all-in-one portable design allows the operator to scan in hard-to-reach places, helping customs and law enforcement screen packages, vehicles, walls, doors, furniture, interlayers of airplane and train, the floor of the cargo storages etc.

TECKNICAL FEATURES

1. The system is a compact, handheld single-side scanner that can be used to scan objects in hard-to-reach places.

2. All-in-one design, 8-inch display. The image is displayed in real time while the object is being scanned.

3. With laser positioning, convenient to quickly determine the scanning position.

4. Resolution:28AWG

5. Penetration: It can distinguish the organic glass or soap after 1mm steel plate.

6. Active area: When the equipment is 50 mm away from the object, the detection width is more than 160 mm and the length direction is unlimited.

7. Imaging speed:300mm/s

8. 4 hours operating time per battery charge (typical based on 25% duty cycle )

9. Overall dimensions: 324mm x 300mm x 143mm

10. All equipment can be placed in one instrument box.

11. Radiation safety: The radiation dose at the operator's position is ≤0.32μSv/h, which can ensure the safety of the operators and bystanders.
