Portable UAV Jammer interfering with the frequency band used by the drone
Product Details:
| Place of Origin: | China |
| Brand Name: | HEWEI |
| Certification: | YES |
| Model Number: | GTUS-III |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 12000~15000 per unit |
| Packaging Details: | carton package, wooden package. |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 100 units per month |
|
Detail Information |
|||
| Name: | Portable UAV Jammer | Module Type: | High-precision L1, 15 Dual-frequency GNSS Receiving Module |
|---|---|---|---|
| Communication Frequency Band: | 490MHz | Transmission Power: | 5w |
| Transmission Distance: | 2km | Encryption Method: | AES Dynamic Encryption |
| Operating Frequency: | 900 ~ 930MHz, 1550 ~ 1620MHz, 2400 ~ 2500MHz, 5715 ~ 5850MHz | Output Power: | 140W |
| Highlight: | portable uav system,detection and jamming uav system,directional detection uav system |
||
Product Description

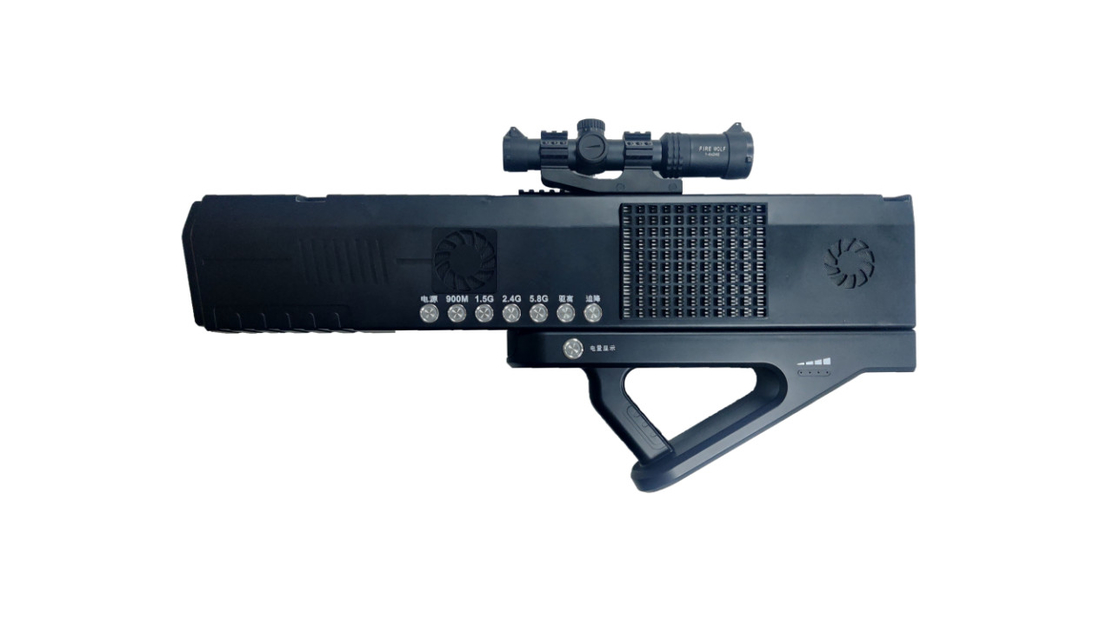

Portable UAV Jammmer
Model:GTUS-III
Description
The system is equipped with a 2.8-inch bright IPS LCD screen, which has the function of interfering with the frequency band used by the drone, which can Expel or forced land the drones, and completely cut off the contact between the drone and the remote control or the ground station to ensure the safety of the low-altitude airspace in the region. Compared with common portable control equipment, this device adds device positioning and networking functions, and can link the back-end command system to facilitate the background command personnel to make transfers according to the distribution of equipment.
Technical Specification
| Position Function Parameter | |
| Module type | High-precision L1, 15 dual-frequency GNSS receiving module |
| Position system | Beidou, GPS |
| PPS search accuracy | ±15ns |
| Maximum speed | 515m/s |
| Speed accuracy | 0.1m/s |
| Dynamic heading Angle accuracy | 0.3 |
| Networking function parameters | |
| Communication method | UART |
| Communication frequency band | 490MHz |
| Transmission power | 5w |
| Transmission distance | 2km |
| Encryption method | AES dynamic encryption |
| Jammer technical parameters | |
| Operating frequency | 900 ~ 930MHz, 1550 ~ 1620MHz, 2400 ~ 2500MHz, 5715 ~ 5850MHz |
| Output power | 140W |
| Signal style | DSSS /FHSS |
| Battery capacity | 2 pieces of 7000mah lithium batteries |
| Endurance | ≥30 minutes (continuous launch); ≥120 minutes (30s launch and 90s stop) |
| Product weight | About 4.8kg |
| Product size | Host: 690*300*80mm |
| Working mode | Expel/Forced land mode; Each module can be individually controlled on and off |
| Screen configuration | 2.8-inch high-lighted IPS screen |
| scope magnification | Maximum 4 times |
| Jamming distance | Flight height 100m: control distance ≥1700m, flight height 200m: control distance ≥2000m |
