Maximum Speed More Than 1.5m/S Eod Robot With Loading 140kg
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | HEWEI |
| Certification: | YES |
| Model Number: | HW-400 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD/Set FOB shenzhen |
| Packaging Details: | carton case |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Name: | EOD Maximum Speed More Than 1.5m/s Robot With Loading 140KG | System Delay: | Less Than 0.25s |
|---|---|---|---|
| The Longest Working Hours: | More Than 8h | Forward Camera: | Color Infrared Induction |
| Backward Camera: | Color Infrared Induction | Cradle Head Various Focal Camera: | Color Infrared Induction |
| Highlight: | loading 140kg eod robot,military eod robot,loading 140kg explosive ordnance disposal robot |
||
Product Description

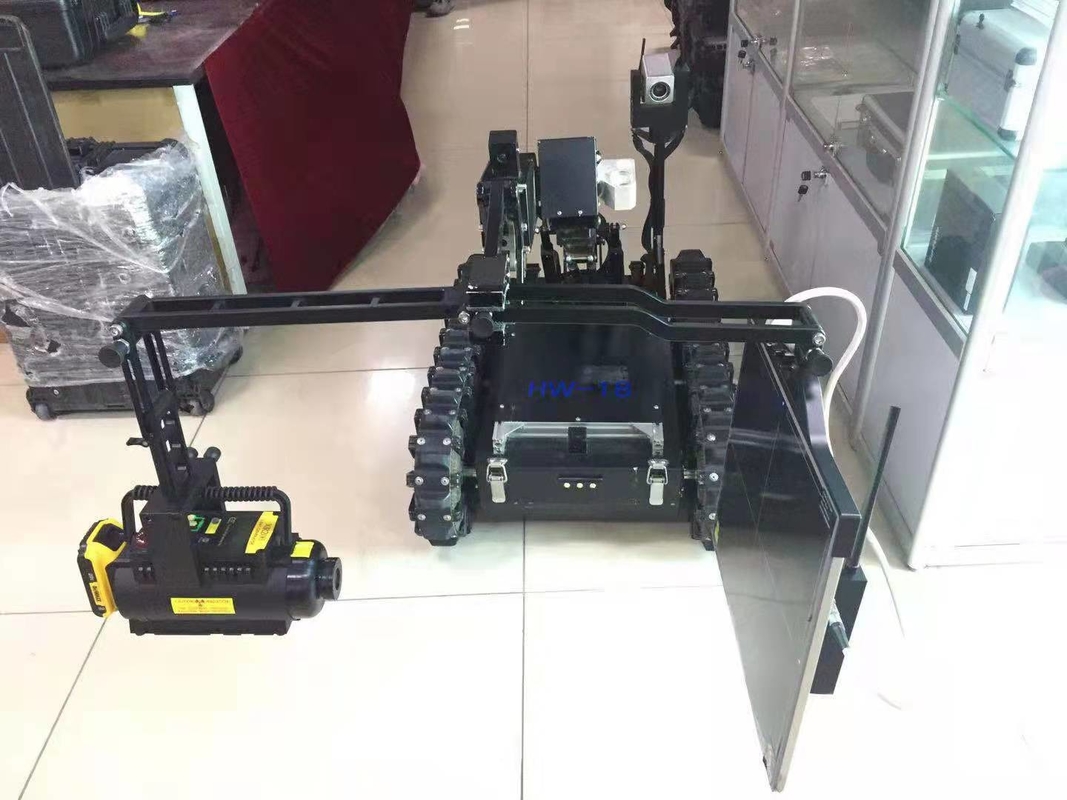

EOD Maximum Speed more than 1.5m/s Robot with loading 140KG
Introduction
EOD Robot has double gripper design, super multi-perspective function, and with integration of reconnaissance, transfer and disposal. As a size EOD robot, HW-400 has a small volume, weighing only 37kg; but its operating capacity has reached the standard of medium-sized EOD robot, and the maximum grabbing weight is up to 12kg. Mobile robot body is made up of box, electrical motor, driving system, mechanical arm, cradle head, monitoring system, lighting, explosives disrupter base, rechargeable battery, towing ring, etc.
Characteristics
(1) Original "Double Gripper" design -- complete a variety of tasks at once, reliable and stable
(2) Graphical design of dual redundant operation -- more friendly interaction, more reliable operation
(3) Remote 3D real-time display -- closely monitoring, and the operation is more intuitive
(4) Intelligent Preset Position Control design -- Easy and fast to operate
(5) XYZ Gripper Pan Operation design based on automatic calculation -- more precise and efficient control
(6) Mode adaptive image system -- seven-way image, the observation angle is more abundant
(7) Integrated Design with Eight Degrees of Freedom Arm -- Control is more flexible and safer
Specifications
| Robot Body | |
| Materials | Aircraft-grade aluminum alloy, precision machining |
| Dimensions | L*W*H: 910 * 650 * 500 mm |
| Weight | 90kg (without accessories, package and control box) |
| Battery | DC24V lead acid rechargeable battery |
| Working time | ≥ 5 hours |
| Maximum Speed | ≥1.5m/s |
| Loading Capacity | When loading 140KG, it can move normally (actual measurement). |
| Lift Capability | It can move with clamping weights of 40K and will not drop (actual measurement). |
| Grade Ability | It can climb up the slope of 45° and stop steadily on the slope. |
| Climbing Stairs Ability | With traction-free assist, it can climb up and down the stairs of 160mm step height and 45°angle slope. |
| Turning Ability | In horizontal cement ground or bituminous pavement, the robot can turn clockwise or anticlockwise 360º. |
| Limited Passage Width | ≤700mm |
| Over-obstacle Capacity | It can cross the obstacle of 320mm height. |
| Max. Mechanical Arms Spread | 1650mm |
| Gripper of Manipulator Maximum Expansion Range | 250mm |
| Arm Extension when stretch out and draw back | 500mm |
| Control Distance | Wireless control: ≥150m (visible range); wire control: 100m (optional 200m); |
| Forward Camera | Color infrared induction |
| Backward Camera | Color infrared induction |
| Cradle Head Various focal Camera | Color infrared induction |
| Manipulator Gripper Camera | Color infrared induction |
| Floodlight | Two group LED floodlight (one group on the front and back) |
| Control Terminal | |
| Box | Portable, waterproof, dustproof, high strength |
| Size | ≤ L 460 * W 370 *H 260 mm |
| Weight | ≤ 10kg |
| Display Screen | 12-inch HB LCD, wide viewing angle, outdoor clear picture |
| Operation | High-quality rocker handle, human software interface design, easy observation and convenient operation |
| Display Image | It can monitor 4 video signals simultaneously or separately amplify one of 4 video signals |
| Battery | Rechargeable 24V lithium battery, working time ≥ 5.1 hours when fully charged. |
