Handheld Effective Portable Explosive Detector Quick Start And Detection Speed
Product Details:
| Place of Origin: | China |
| Brand Name: | HEWEI |
| Certification: | YES |
| Model Number: | HWX16C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Carton package |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets per month |
|
Detail Information |
|||
| Name: | Handheld Explosive Detector | Analysis Time: | Less Than 5s |
|---|---|---|---|
| Start-up Time: | Less Than 10s | Operating TEMP: | - 20 ℃ ~ 55 ℃ |
| Rated Capacity: | 65.5Wh | Display Screen: | 3"TFT Color Display Screen |
| Highlight: | quick start portable explosive detector,effective portable explosive detector,quick start handheld explosive detector |
||
Product Description

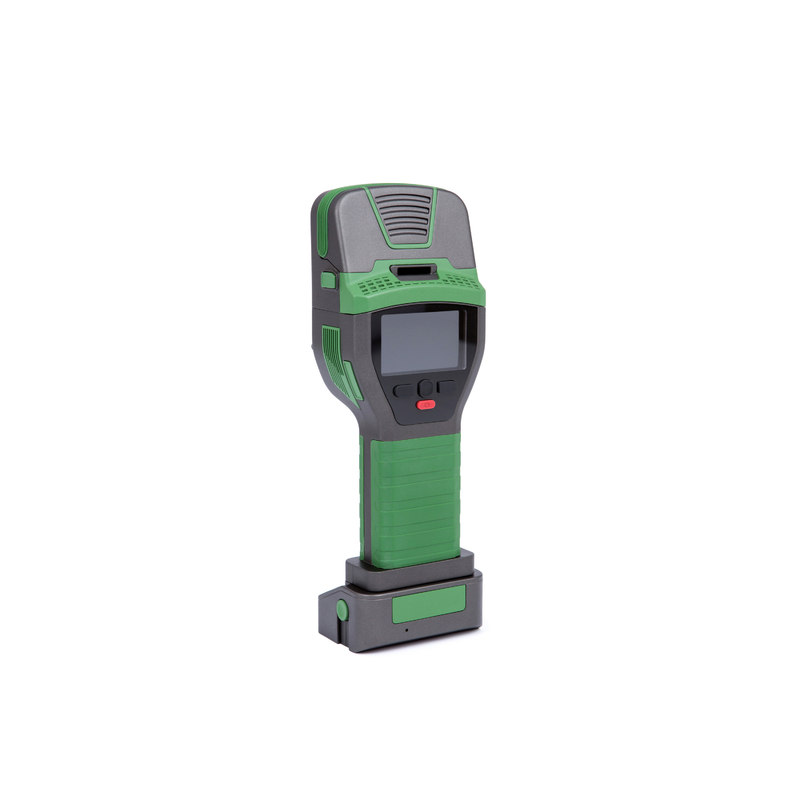

Quick start and detection speed Handheld explosive detector
The cold start time is within 10 seconds.The TNT detection limit is 0.05 ng level, and more than 30 kinds of explosives can be detected. The product is calibrated automatically. The newly developed HWX16C product is the portable trace explosive detector with the highest detection limit and the most explosives in the domestic and foreign markets.
Specifications
| NO | Technical Specs
| |
| 1 | Technology | Amplified Fluorescent Polymer Quenching Sensor |
| 2 | Analysis time | ≤5s |
| 3 | Start-up time | ≤10s |
| 4 | Sampling method | Particle and Vapor |
| 5 | Detection Sensitivity | Particulate: TNT LOD ≤0.05ng |
| Vapor: PPM | ||
| 6 | Operating TEMP | - 20 ℃ ~ 55 ℃ |
| 7 | False alarm rate | ≤ 1% |
| 8 | Power Consumption | 7.5W |
| 9 | Rated voltage | 7.4V |
| 10 | Rated Capacity | 65.5Wh |
| 11 | Rated Energy | 8850mAh |
| 12 | Display Screen | 3"TFT Color display Screen |
| 13 | Com Port | USB2.0 |
| 14 | Data Storage | ≥100000pieces of record |
| 15 | Battery | Two Li-ion Rechargeable Battery |
| 16 | Battery Working Time | Single battery time up to 8 hours |
| 17 | Battery Charging Time | ≦3.5hours |
| 18 | Alarming method | Visual / Audible / Vibration |
| 19 | Dimensions | 300mm × 106mm × 71mm |
| 20 | Weight | ≦1.05kg including battery |
| 21 | Protection Level | IP53 |
| 22 | Substances detected | Military, Commercial, and Homemade Explosives including: TNT, DNT, MNT, Picric Acid, RDX, PETN, TATP, NG, Tetryl, HMX, C4, NA, AN, Black Powder, and others. |
