Long Range Day Night 25fps CMOS Color Digital Camera 5000m
Product Details:
| Place of Origin: | China |
| Brand Name: | HEWEI |
| Certification: | YES |
| Model Number: | HW-CSYS-Ⅲ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD per set FOB Shenzhen |
| Packaging Details: | carton package, wooden package |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 50 sets per month |
|
Detail Information |
|||
| Name: | 7 Inches Full HD Touch Screen, SSD Hard Disk Video Camera | Observation Range At Day/Night: | Up To 5000m / 2000m |
|---|---|---|---|
| The Sensor Type: | CMOS | Sensor Size: | 1/2inch CMOS |
| Effective Pixels: | 1945 (H) *1225 (V) | The Video Resolution: | 1080P (25fps) |
| Exposure Mode: | Shutter Aperture | The Screen Size: | IPS 7 Inches Widescreen LCD |
| Highlight: | 25fps long range digital camera,cmos color digital camera,5000m color digital camera |
||
Product Description

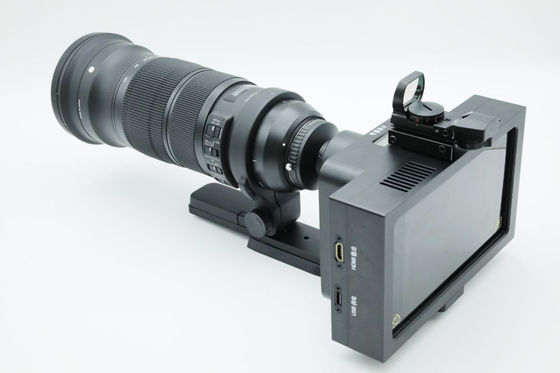

Long Range Day & Night Color Digital Camera
7 inches full HD touch screen, SSD hard disk video camera Long Range Day & Night Color Digital Camera
Long Range Day & Night Color Digital Camera
Features
● It can be used in low-light environment at night as well as at daytime.
● The video it takes are full colour and high definition which can be as evidence presented to court.
● The color minimum illumination can reach 0.000001lux
● Variable-focus professional photographic lens ((120-300 mm) with large aperture
● 7 inches full HD touch screen, SSD hard disk video camera
● Portable integrated design, built-in high density lithium battery pack (working time≧ 6 hours)
● It can recognize clearly the face and car plate number @ 500m away
● VR (Optional)
● Laser supplement light (Optional)
Specification
| Technical Data | |
| Observation Range at Day/Night | Up to 5000m / 2000m |
| Recognition Range at Day/Night | Up to 600m / 500m |
| The sensor type | CMOS |
| Sensor size | 1/2inch CMOS |
| Effective pixels | 1945 (H) *1225 (V) |
| The video resolution | 1080P (25fps) |
| The video signal | SDI |
| Video noise control | Software 2D, 3D noise reduction, hardware capacitor filter |
| Color minimum illumination | 0.000001LUX |
| Imaging Sensing | Full color in daytime & night illumination |
| Exposure mode | Shutter aperture |
| Fog and smoke elimination | Electronic passing through fog, software implementation |
| White Balance setting | Automatic white balance |
| Digital zoom | Maximal 16X |
| Wide dynamic range | 120db |
| The screen size | IPS 7 inches widescreen LCD |
| The screen resolution | 1920*1200 |
| The screen brightness | 1500nit |
| Operating mode | Touch screen control |
| Storage medium | 2.5inch SSD hard disk, standard 1TB (maximum 2TB) |
| Video file format | MOV (10 bit code) |
| Working voltage | DC 10-13V |
| The machine power consumption | 30W |
| Working temperature | -10℃—50℃ |
| Backup battery | 11.1V 19.2AH, 6 hours (built-in Li-ion battery) |
| External power | AC 110-240V |
| Enclosure type | IP20 |
| Construction | Rugged compact housing made of aluminum |
| Weight | 5.6 Kg without sight |
| Size |
L454mm x W225mm x H152mm |
Technical Specs Remote Control
● Language interface: English
● Camera Menu Call: Support
● Power Supply: Built-in lithium battery (7.4v / 1200mah)
● Working time: Continuously >10hours
● Operation mode: Button Control
● Display: 1.3" OLED
● Size: 110*55*25 (mm)
● Weight: 115g
Technical Specs VR glasses (Optional Accessory)
● Glasses Resolution: 1920*1080
● Display Screen: 2x0.7inch OLED
● OLED W:H ratio: 16:9
● Light Transmittance Rate: 99%
● Myopia Accommodation: Single eye 1000°
● Inter Pupillary Distance: 64±6mm
● Power Supply: USB 5V
Technical Specs Laser Flashlight (Optional Accessor
● Observation Range at night: Up to 1000m
● Video Mode: Black and White
● Wavelength: 980nm
● Power: Adjustable-03 levels, max. 8.5w
● Voltage: DC 10-13v
● Power Consumption: Up to 17W
● FOA: 0.3-9 degrees
● Weight: 660g
● Size: 195*65*105mm
Component List
| No | Name | Unit | Quantity |
| 1 | HW-CSYS-III Integrated host | Set | 1 |
| 2 | Backup battery 11.1V 19.2AH | Set | 1 |
| 3 | Main Host charger (12.6v 2A) | Set | 1 |
| 4 | Spare battery cable (2.5 meter) | Set | 1 |
| 5 | Vehicle charging spring wire (7.5 meter) | Set | 1 |
| 6 | Infrared sight | Set | 1 |
| 7 | Straight screwdriver, hexagonal wrench | Set | 1 |
| 8 | Lens cleaning kit | Set | 1 |
| 9 | Remote control and Charger (8.4v 500mA) | Set | 1 |
| 10 | SSD USB3.0 Hard-disk box | Set | 1 |
| 11 | Tripod with carrying bag | Set | 1 |
| 12 | User manual | Set | 1 |
| 13 | ABS case | Set | 1 |
